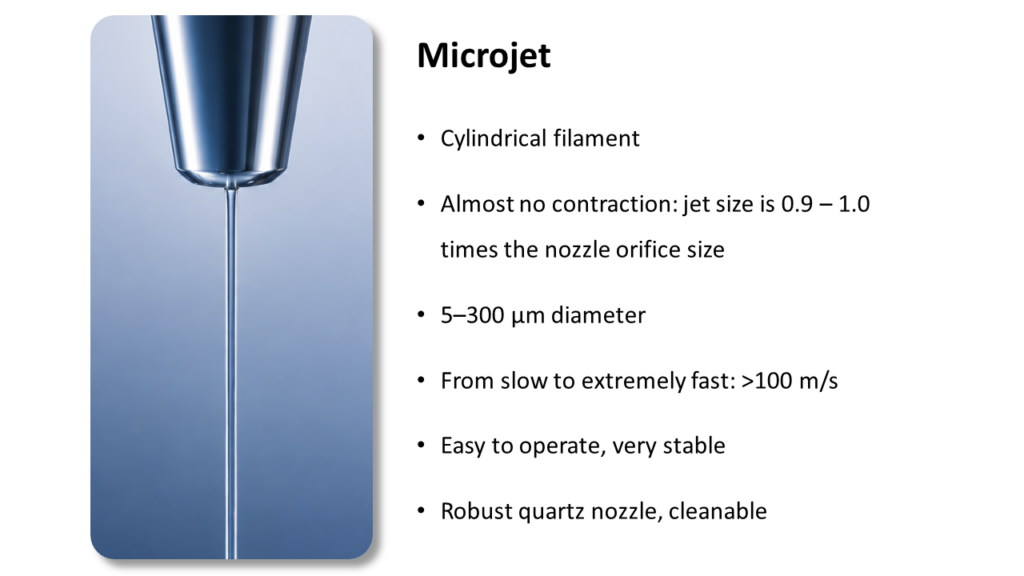

MicroJet
A thin filament shape liquid microjet is generated by a
robust quartz nozzle.

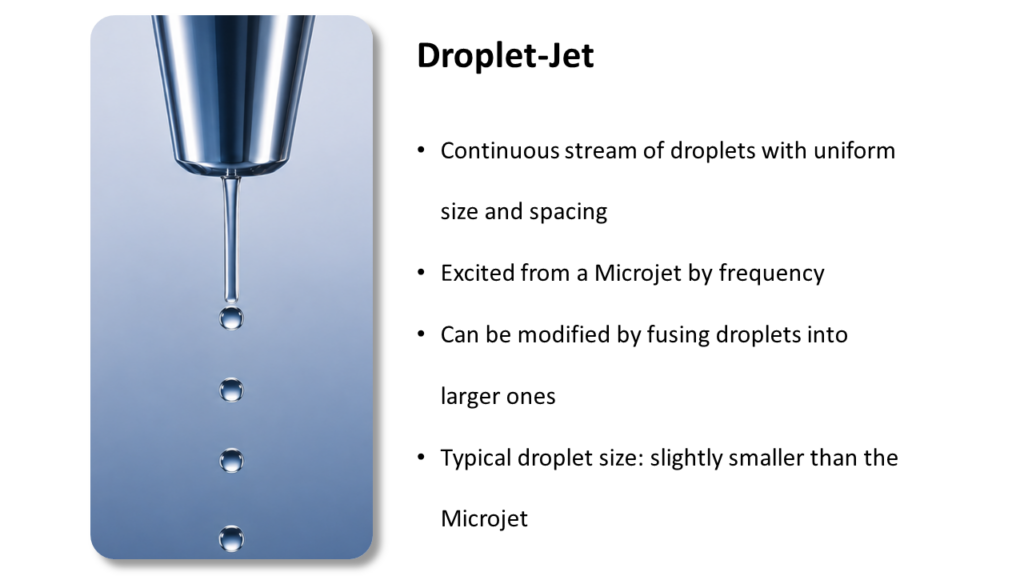

The microjet can also be operated as a uniform droplet stream.

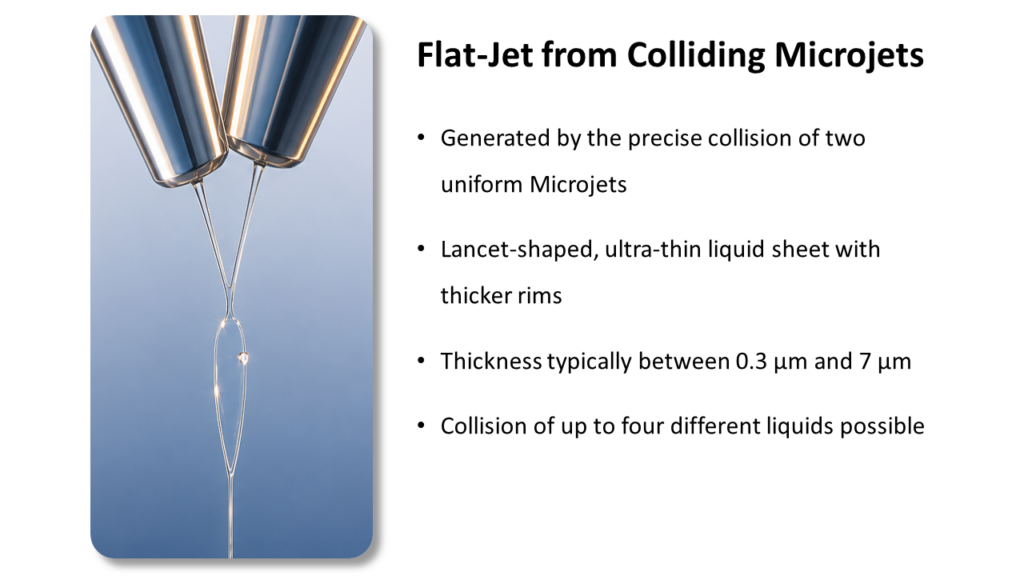

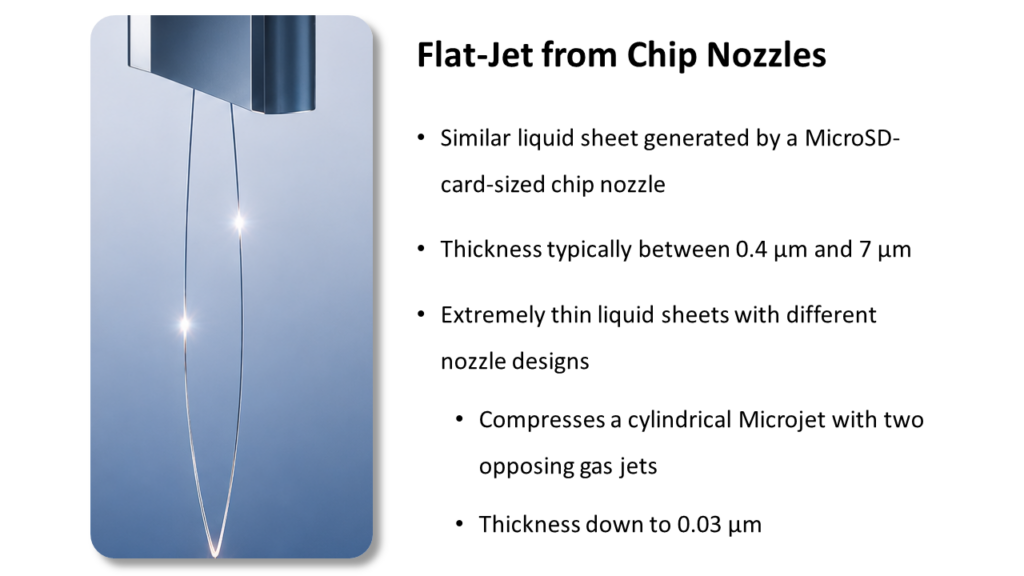

FlatJet
The thin liquid sheet is presented as a flat target.
We promote two major technologies for liquid sheet generation, both with specific ups and downs.

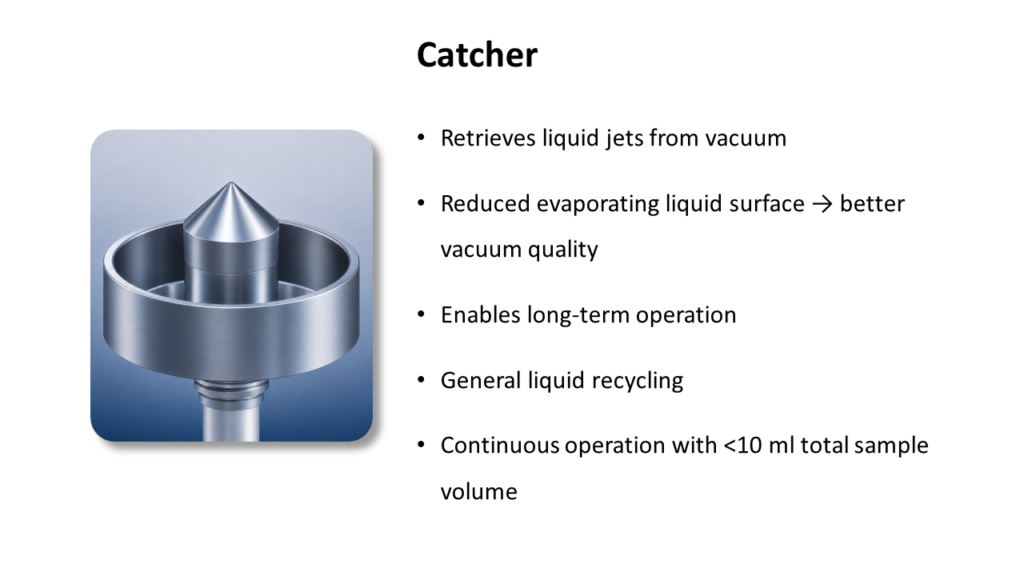

Catcher
The Catcher unit removes the liquid jet from vacuum via a small orifice, allowing for long-term operation, stability, and sample recycling. It is compatible to all kinds of microjets.

UHV Solutions
Compact liquid jet units can be rapidly positioned (and removed as a whole) inside a larger UHV chamber.

Cold traps / Cryo Pumps
Liquid nitrogen Cold traps are cryo pumps functioning as extremely effective vacuum pumps when operating liquid jets in vacuum.
Accessories / Spare parts
We provide accessories and spare parts for our systems and anything related to jet and Catcher technology.
For Example: Nozzles, Nozzle Sealings, Connection material, and Replacement parts for individual systems, as well as custom solutions.
